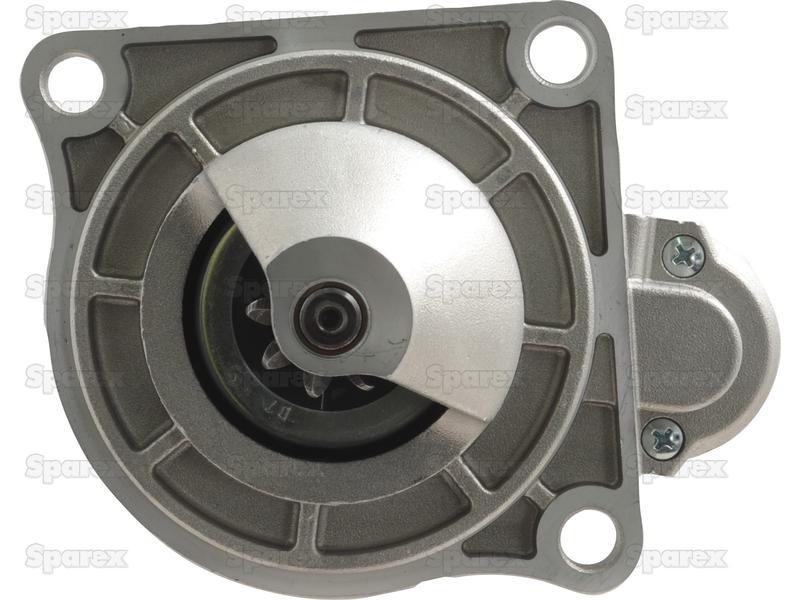

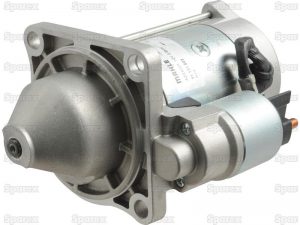

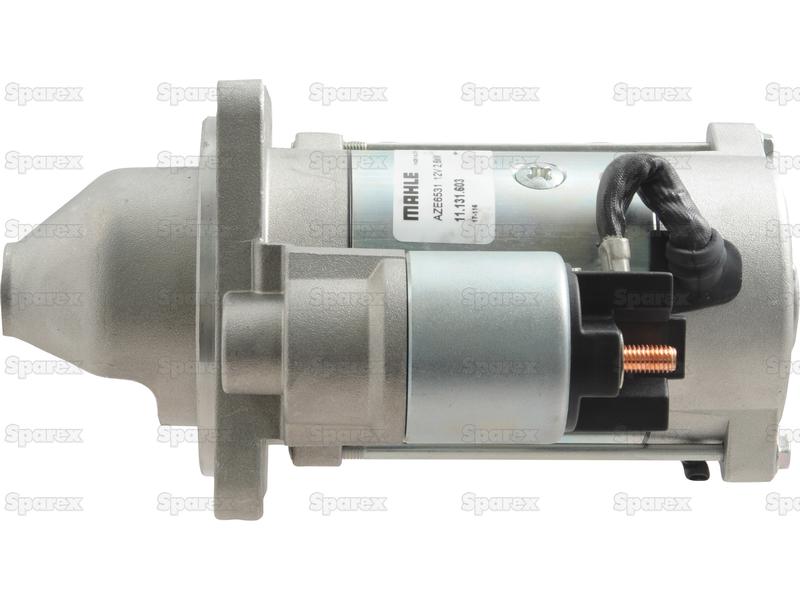

Electromotor Case IH, Fiat, Ford New Holland, Steyr – Sparex 127869
Specificatii tehnice produs
Electromotor pentru urmatoarele modele:
- Case IH / International Harvester model: JX100U, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95
- Fiat model: 45-66, 45-76, 50-66, 55-46, 55-56, 55-65, 55-66, 55-75, 55-76, 55-85, 55-86, 55-88, 55-90, 60-46, 60-56, 60-65, 60-66, 60-75, 60-76, 60-88, 60-90, 60-93, 60-94, 62-86, L60, L65, L75, L85, L95
- Ford New Holland model: 3400, 3435, 3830, 3935, 4030, 4135, 4635, 4835, 5635, 6635, 7635, LB110, LB115, LB75, TD55D, TD60, TD60D, TD65B, TD65D, TD70, TD70D, TD75D, TD80, TD80D, TD85D, TD90, TD90D, TD95, TD95D, TK65, TK70, TK75, TL100, TL65, TL70, TL80, TL90, TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN95VA, TT65D
- Steyr model: 360 Kompakt, 370 Kompakt, 375 Kompakt
Produs in Anglia
Electromotor Case IH, Fiat, Ford New Holland, Steyr – Sparex 127869
Electromotor produs de Mahle
Gear Reducted
12V
Putere 2,6 Kw
Bendix 9 dinti
Prindere in trei puncte

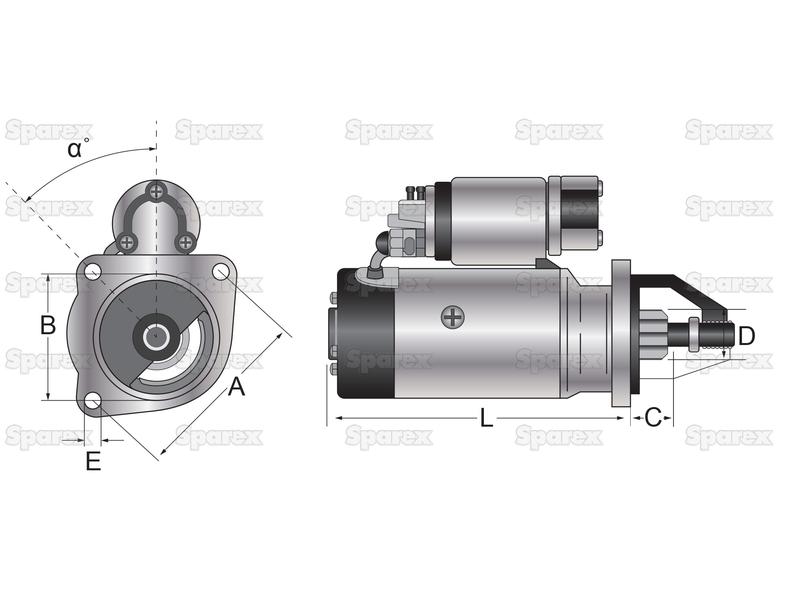

Dimensiuni conform schemei de mai sus:
unghiul a -55º
A = 146 mm
B = 110 mm
C = 30,5 mm
D = 39,6 mm
E = 12,2 mm
Lungime 170 mm
Se utilizeaza la urmatoarele modele:
Case IH / International Harvester
JX100U, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95
Fiat
45-66, 45-76, 50-66, 55-46, 55-56, 55-65, 55-66, 55-75, 55-76, 55-85, 55-86, 55-88, 55-90, 60-46, 60-56, 60-65, 60-66, 60-75, 60-76, 60-88, 60-90, 60-93, 60-94, 62-86, L60, L65, L75, L85, L95
Ford / New Holland
3400, 3435, 3830, 3935, 4030, 4135, 4635, 4835, 5635, 6635, 7635, LB110, LB115, LB75, TD55D, TD60, TD60D, TD65B, TD65D, TD70, TD70D, TD75D, TD80, TD80D, TD85D, TD90, TD90D, TD95, TD95D, TK65, TK70, TK75, TL100, TL65, TL70, TL80, TL90, TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN95VA, TT65D
Steyr
360 Kompakt, 370 Kompakt, 375 Kompakt
Cod piesa producator:
Bosch
986022550, 1223503, 1109450, 1362105, 1223504
Case IH / International Harvester
82980757
Fiat
500338953
Ford / New Holland
82980757
Iskra
IS1263
IVECO
500338953, 500333269, 5801441816
Lester
18950
Lucas
LRS01976
